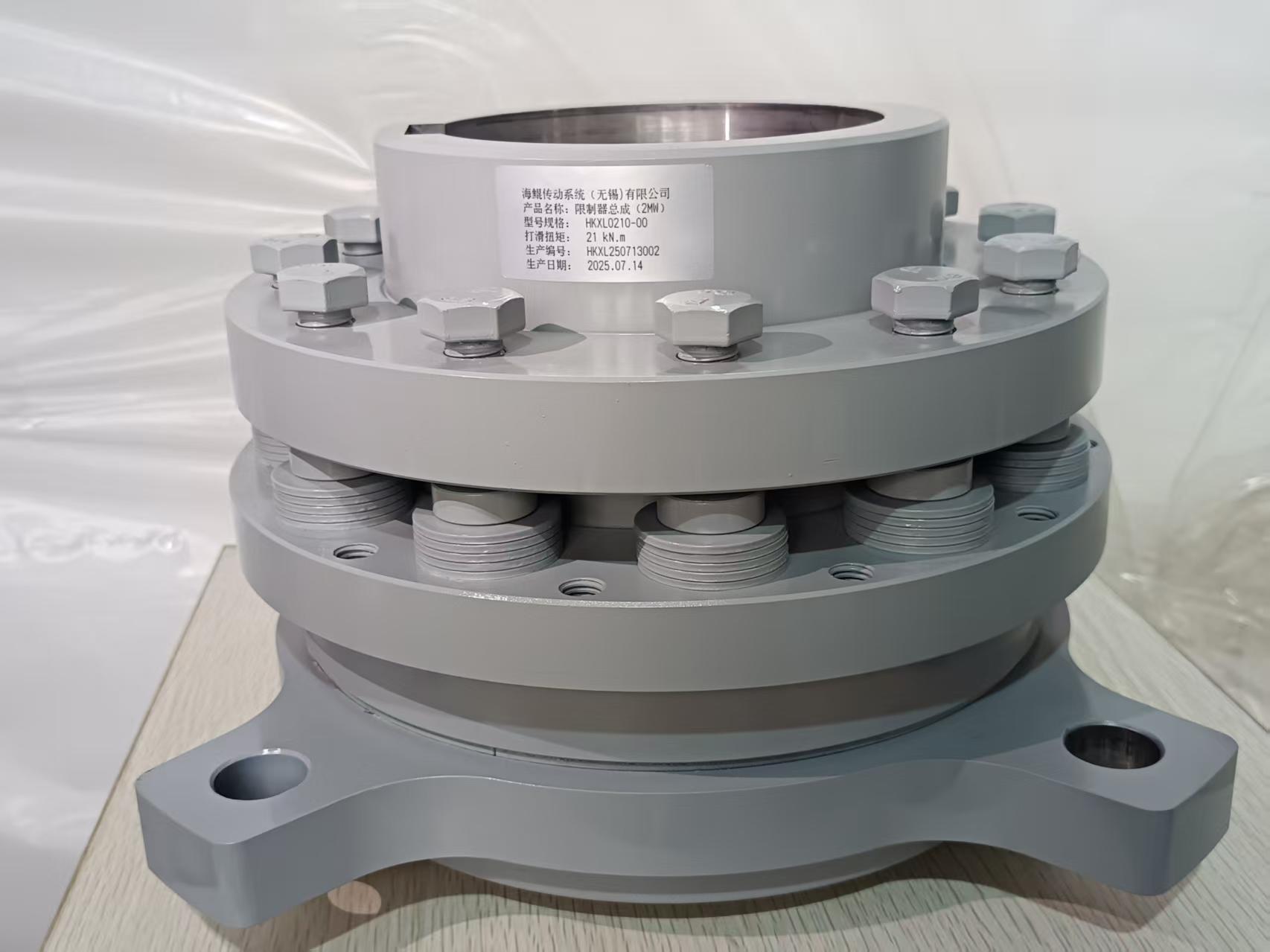

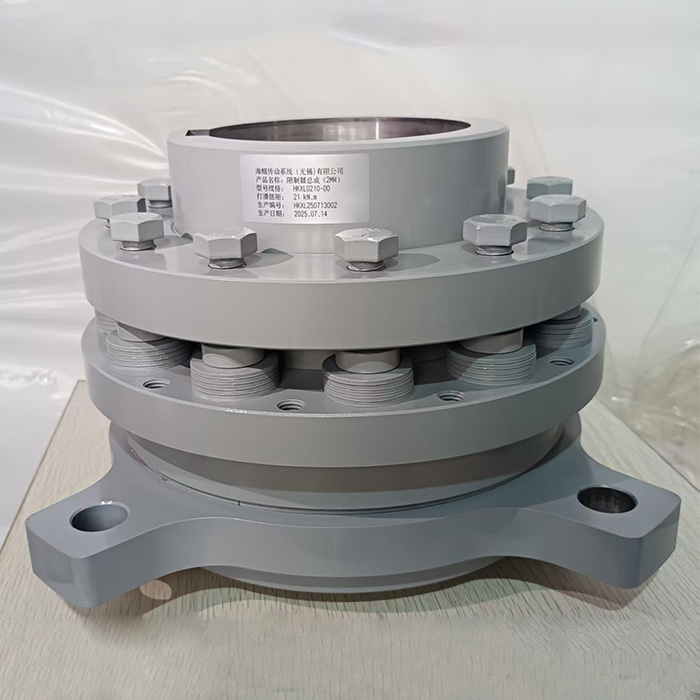

Torque Limiter for wind turbine
Model：HKXL0210-
Slip Torque：21 KN.m
Production No.：HKXL250713002
The advantages of the integral spring design
Reduce the compressive stress on the friction plate. Reduce the total stiffness of the disc spring. During the calculation, it is necessary to control the MISES stress and the maximum principal stress of the diaphragm spring to avoid cracking; at the same time, the stiffness should be regulated according to the diaphragm spring displacement to ensure that the friction plate does not exceed the specified wear limit within the specified number of wear cycles, and the torque attenuation does not fall below the lower limit value.
Substitution Capability – Breaking Import Dependence and Reducing Overall Costs
Deeply cultivate the post-market of wind power, focus on independent and forward-looking R&D, and realize substitution value.

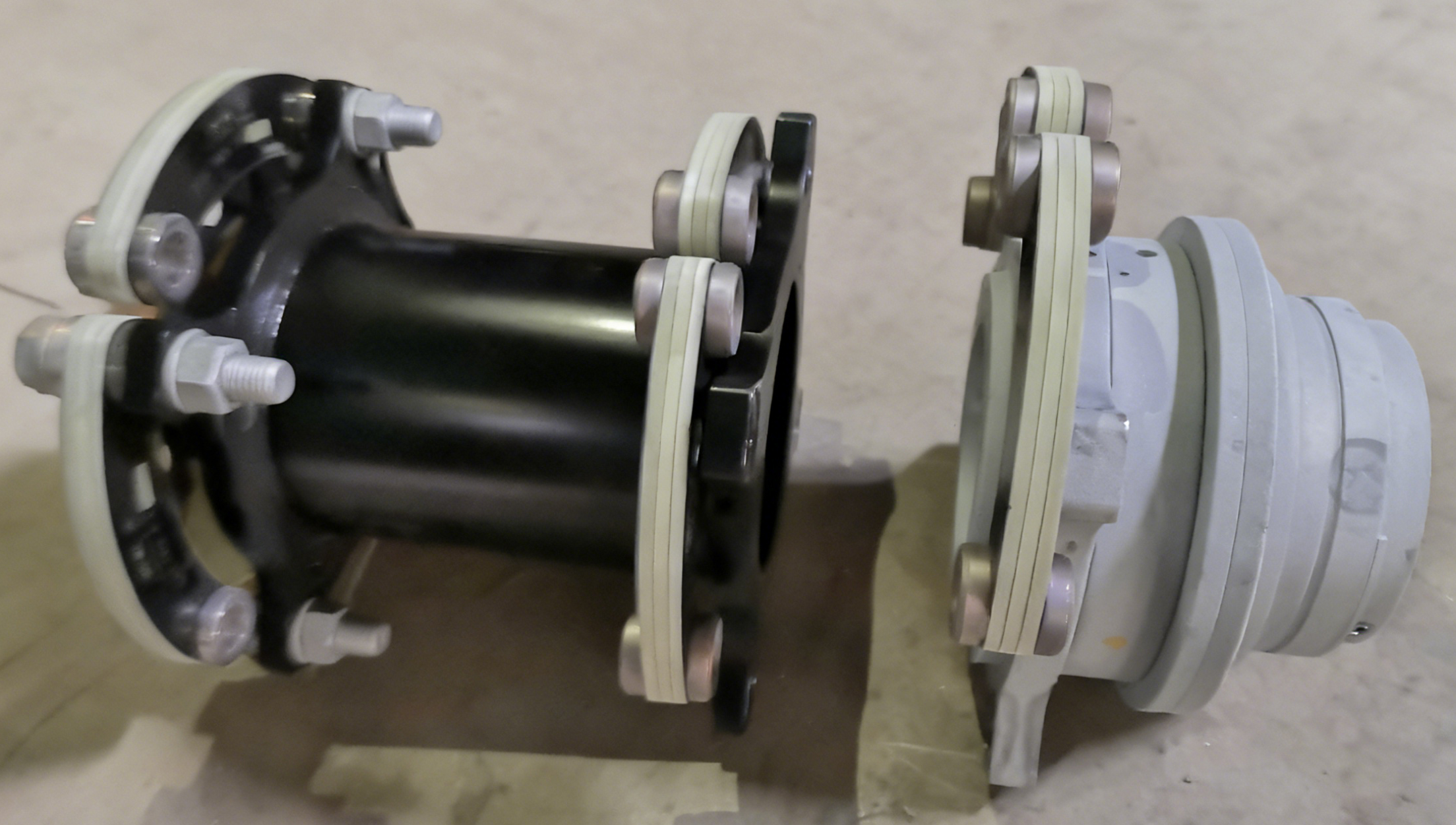

Complete Set Replacement: Precisely matches imported brands such as KTR, CENTA, and ZEROMAX, allowing for direct replacement without any equipment modification. Component replacement: For key components such as diaphragm groups and expansion sleeves, we offer customized and replacement services to reduce the overall replacement cost of wind turbines. Maintenance & Upgrade: Our professional team disassembles and analyzes the root causes of component failure. In addition to providing repair solutions, we incorporate localized improvement designs to extend service life.
Searoc Transmission specializes in custom-built wind power couplings, hydraulic slip rings, and a full range of rotary joints for high-temperature, high-pressure, high-speed and multi-channel applications.Each product undergoes strict pressure, service life and simulated working condition tests before leaving the factory.As a trusted partner to numerous industry leaders, we not only provide standard products, but also strive to jointly develop innovative solutions with you to address future challenges.Contact our technical sales team for free selection consultation and sample testing.
Based on operating conditions（Limit Torque×Safety factor）Calculate the theoretical normal pressure required for the intermediate shaftσ；
Preliminary model design；
Calculate theoretical normal pressureσThe corresponding amount of propulsion and the stress level of each component;
The modified model gives a reasonable amount of thrust and controls the stress level of each component.
The torque limiter is proposed to adopt the integral disc spring type, which has the following characteristics: ① reducing the pressure stress on the friction plate; ② reducing the total stiffness of the disc spring.

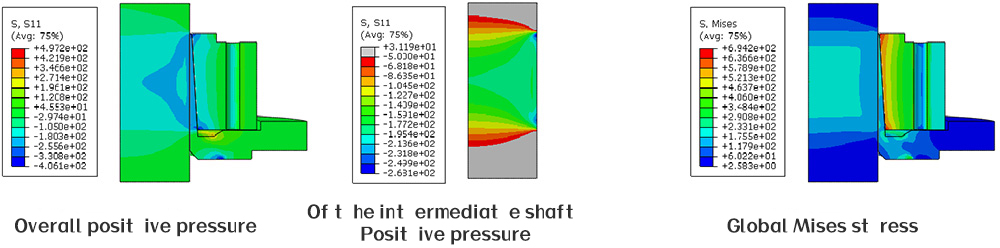

The Mises stress and the maximum principal stress of the disc spring shall be controlled during calculation to prevent the disc spring from cracking. The stiffness of the disc spring shall be controlled according to its displacement, so that the torque attenuation of the friction plate does not exceed the lower line under the specified number of worn turns.
Diaphragm, Intermediate Barrel and Flange Assembly——Strength design characteristics
Limit Torque
Limit displacement (axial, radial, and angular)；

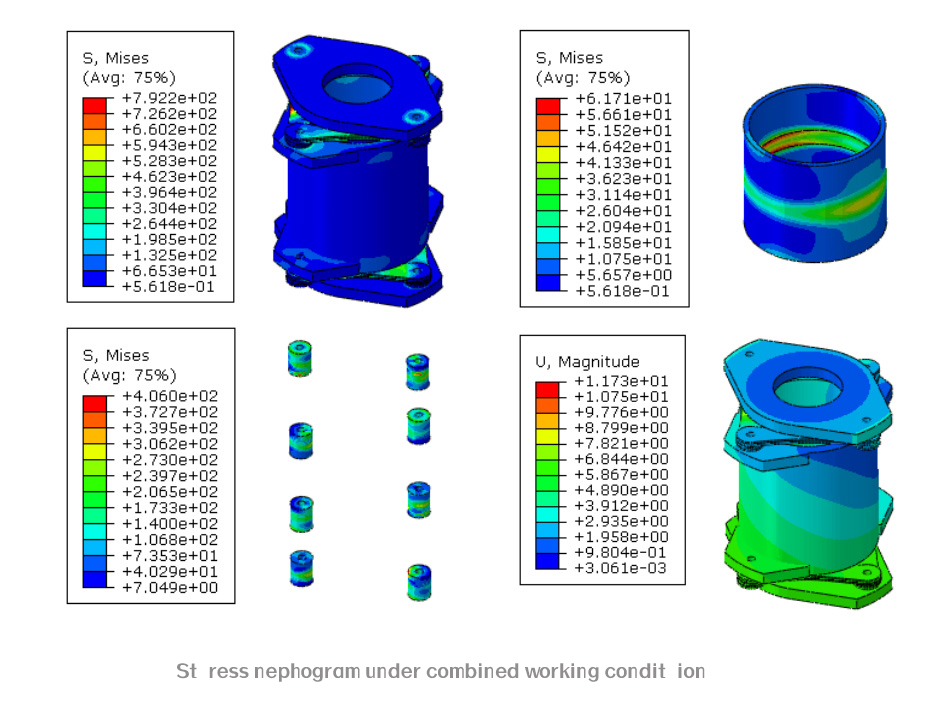

Combined working condition (load + displacement)
